(U.33A) -Screw Jack (Mechanical, 30-ton)(USAG)

4.51 Lbs
 Currently out of Stock
$450.00
Notify me when in stock

Description:

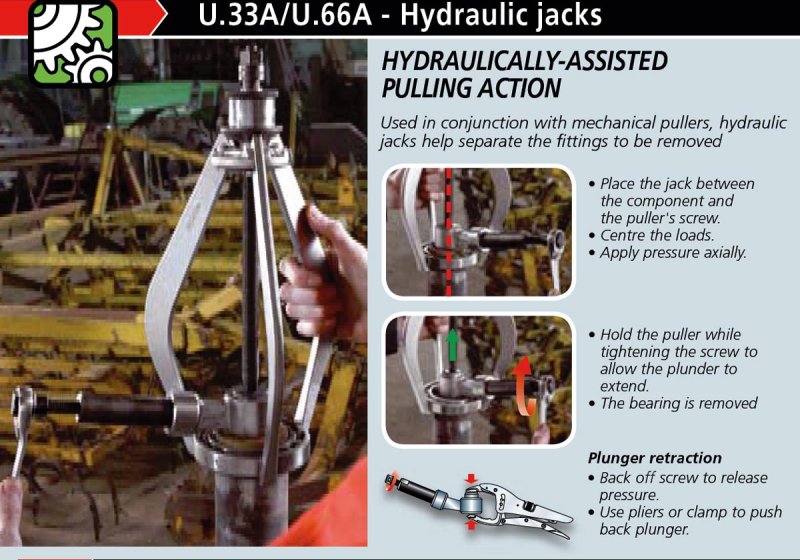

USAG 30-ton Jack with Mechanical Screw (U.33A-USAG) - Identical to the Facom version. Used in conjunction with mechanical pullers, hydraulic jacks help separate the fittings to be removed. This U.33A is rated at 30 tons with 5mm of travel. During screw tightening, a shear-pin will protect the tools and user if the maximum allowable torque is exceeded (shear-pin rating is 110nm). When using both puller and jack, make sure generated forces are compatible. Never use with pneumatic tools!

  • Travel 5 mm.
  • Shear-pin rating 110 Nm.
  • 33mm diameter plunger
  • Length : 260 mm, head height : 35 mm.
  • Force : 30 tonnes ; 300 kN.
  • 19 mm hexagonal screw.
