(U.306PB) -Inside/Outside Puller Set (USAG)

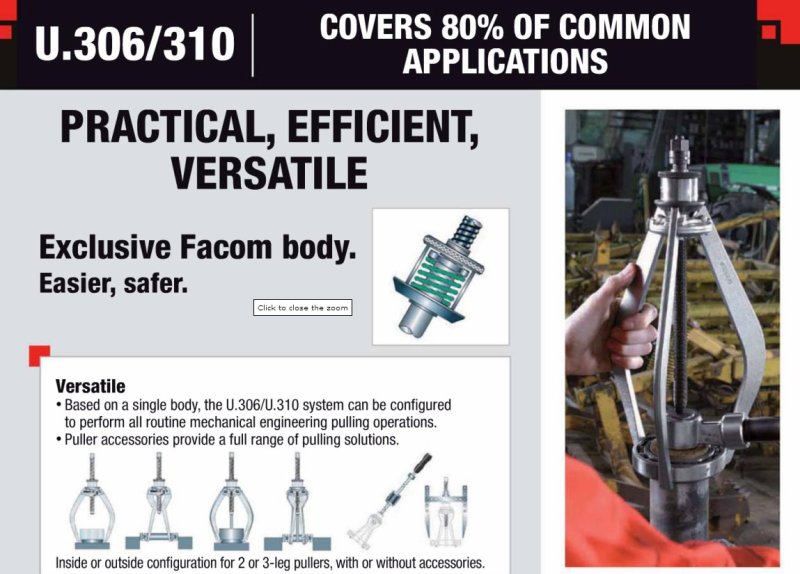

• Versatile: takes 2 or 3 legs. Converts to an inside puller with the legs U.306G2 + screw U.306-4 or legs U.306G20 + screw U.306-2.
• Comfort: self-gripping legs by return spring. The puller stays in rolling position even when not in tension.
• Safety: legs locked in position on the bearing using a knob. No risk for the puller to escape from the bearing.
• Shear pin: the pin shears if torque limit is exceeded. Supplied with 2 spare pins.

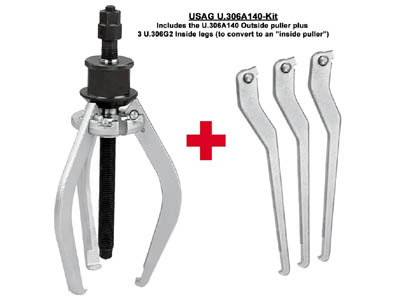

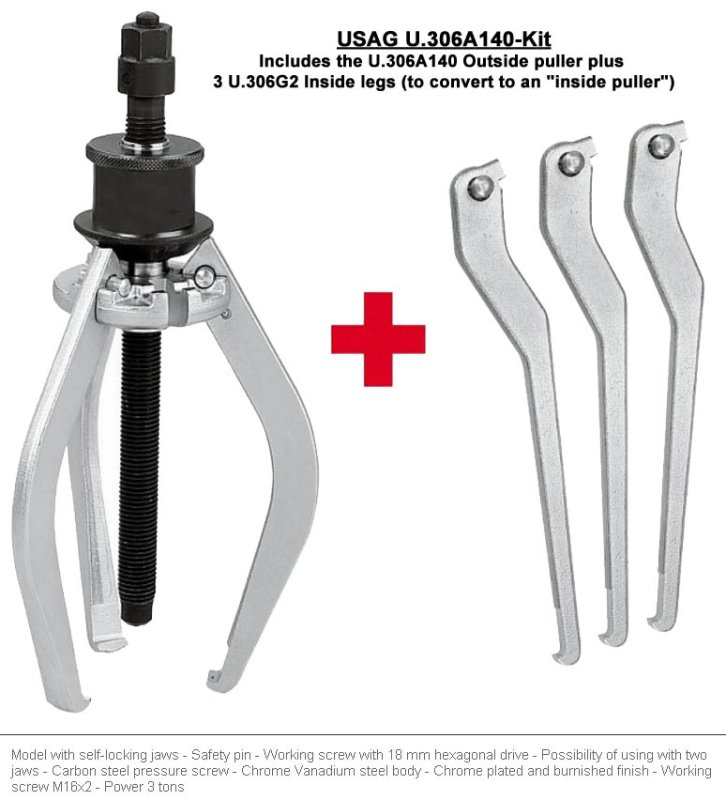

Kit includes the following......

• 1 puller U.306A140 (3 ton Outside 3-leg Puller)
• 3 inside legs U.306G2 (for use with U.306A140)
• Spread: - Outside: 7 to 140 mm. - Inside: 23 to 130 mm.
• Reach: 140 mm.
