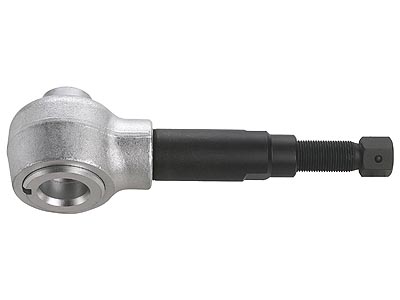

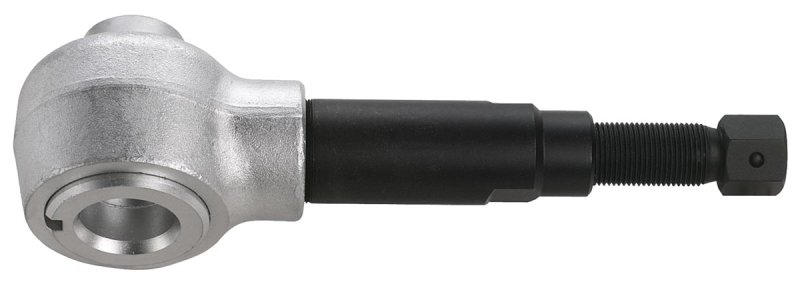

(U.66A) -Screw Jack (Mechanical, 120-ton)

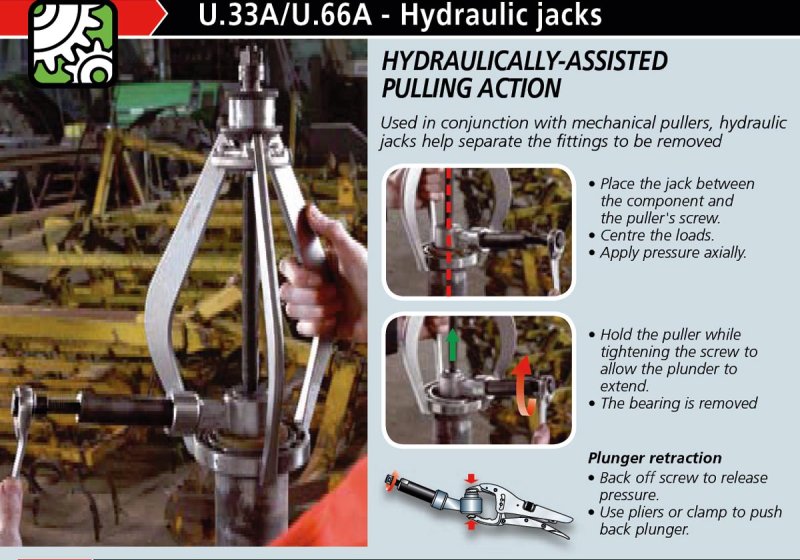

Facom 120-ton Jack with Mechanical Screw (U.66A) - Used in conjunction with mechanical pullers, hydraulic jacks help separate the fittings to be removed. This U.33A is rated at 120 tons with 15mm of travel. During screw tightening, a shear-pin will protect the tools and user if the maximum allowable torque is exceeded (shear-pin rating is 550nm). When using both puller and jack, make sure generated forces are compatible. Never use with pneumatic tools!

• Travel 15 mm.
• Shear-pin rating 550 Nm.
• Supplied with 3 spare pins (U.66A03J3)
• Piston Ø: 80 mm; borehole Ø: 47 mm
• Length : 500 mm, head height : 105 mm.
• 6-point screw size 36mm
• Force : 120 tonnes ; 1200 kN.
• Weight - 8.8kg
