Prevost

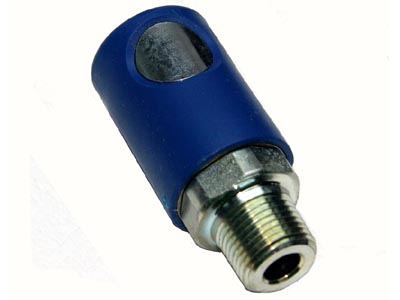

Coupler (Industrial Profile) - 1/4" body with 3/8"
Female - Prevost
"Push-button" Quick Couplers are great for any shop
that uses compressed air. I recommend the 1/4" flow
bodies for smaller systems and at the ends of your
(1/4", 5/16" or 3/8" id) air hoses. Sale pricing limited to supply in stock.
Prevost "Standard" quick couplers release with a single push of the button
on the side of the coupler, an easy one-handed operation.
Technical features of this coupler include........
- 1/4" Flow (29cfm)
- Industrial Interchange
Profile
- Nitrile seals for leak free
connections
- Stainless steel spring
- Impact resistant plastic
composite body
- 175psi working pressure
- Push to connect
- Push button disconnect
Note on Thread Size -
Thread Size (NPT) does NOT refer to the physical dimension of the
pipe or fitting. Please refer to the table below if you're unsure
of which size to buy. For example, a 1/4" NPT pipe thread
(common air tool fitting size) has an outer diameter of
0.540".
Outside Diameter
(OD/inches) = Pipe Thread Size (NPT)
- 13/32 (.405") =
1/8" NPT
- 35/64 (.540") =
1/4" NPT
- 43/64 (.675") =
3/8" NPT
- 27/32 (.840") =
1/2" NPT
- 1-3/64 (1.050") =
3/4" NPT
