GM
brake bleeder adapter cap fits securely over
reservoirs with a rectangular cover size 4 1/2" x 6
7/8". It was manufactured to fit the Caprice/Impala
models (94-96) . The full application list is
below....check your reservoir size before ordering to ensure
you don't have the smaller 3 1/2" x 6" cap. Please
also check the application chart from the GM website
(click image to enlarge). This chart may be more thorough
than the list below.
- Pontiac:
Bonneville (81-85), Fiero (84-88), Firebird (81-91),
Firebird/trans-am (92), Grand Prix (87), Parisienne
(83-86), Safari (87-89)
- Oldsmobile:
Regency (82-84), Custom Cruiser (87-92)
- GMC Trucks
& S10/Blazer (82-97)
- C&K Trucks
(81-85) & (92-99)
- M Vans
(96-99)
- R-V Full Size
Pickups (old body style) (87-91)
- Caprice
(81-90) & Caprice/Impala (94-96)
- Camaro (81-92)
- Cadillac:
Fleetwood (81-92), Eldorado (82-85), Deville (81-84)
- Buick:
B Body & Wagon (91-96), Riviera (82-85), Regal
(82-87)
Adapter

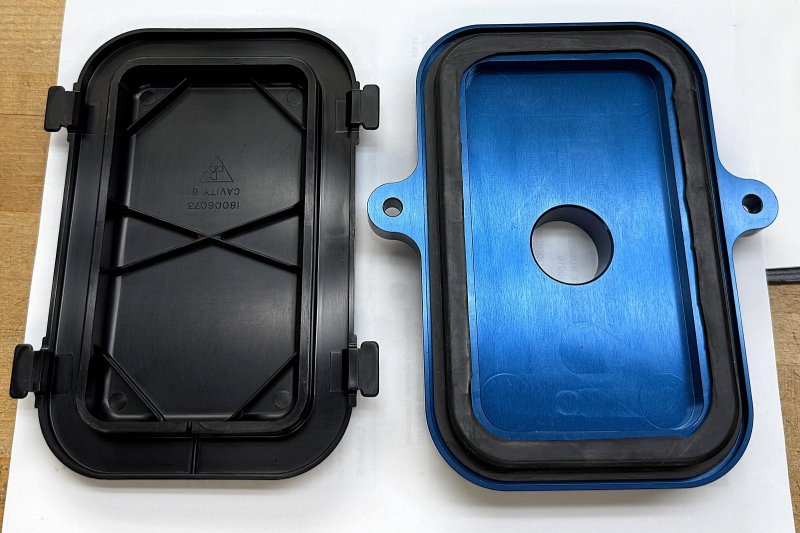

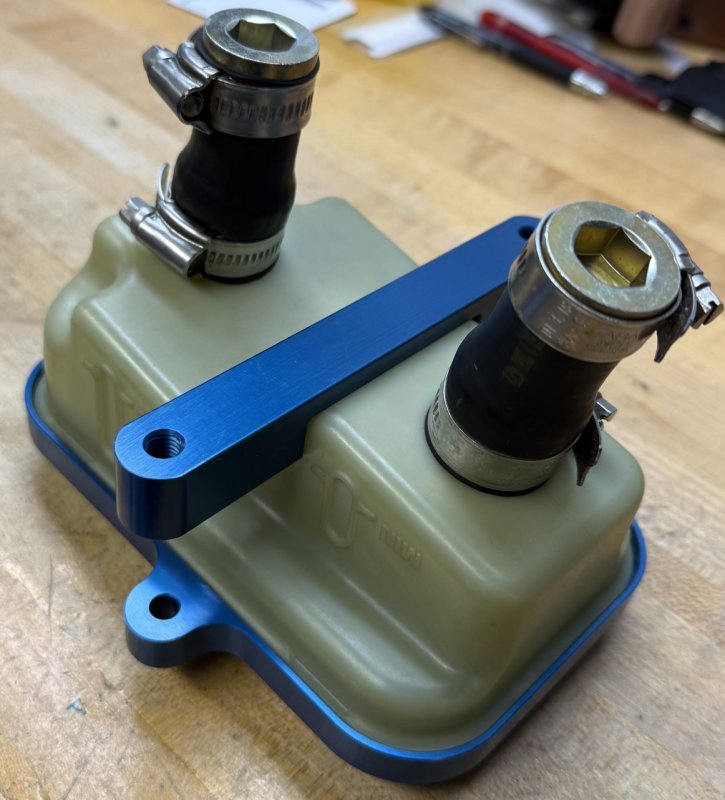

includes upper cap (with factory GM gasket), lower bracket

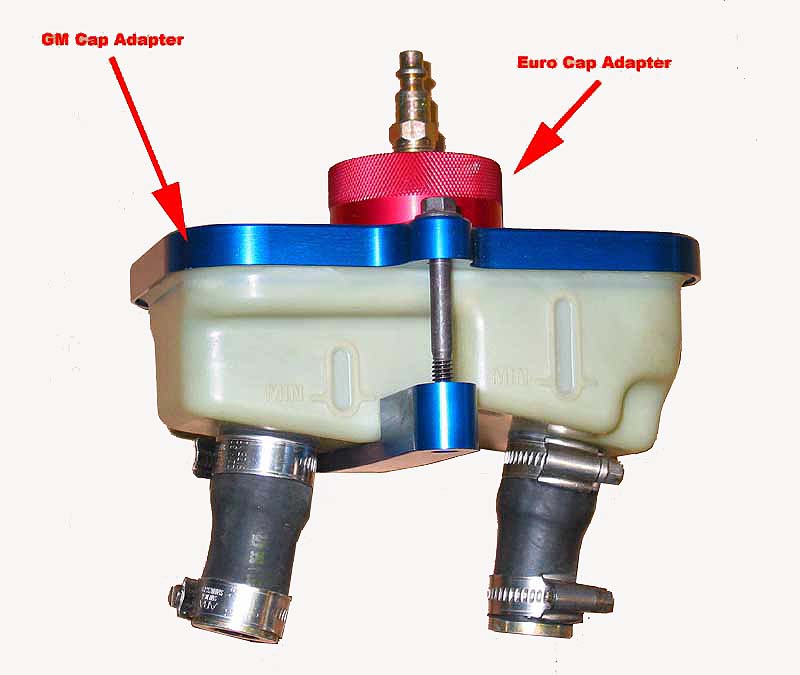

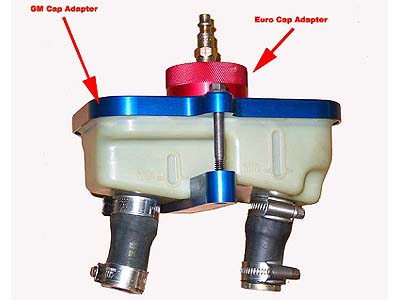

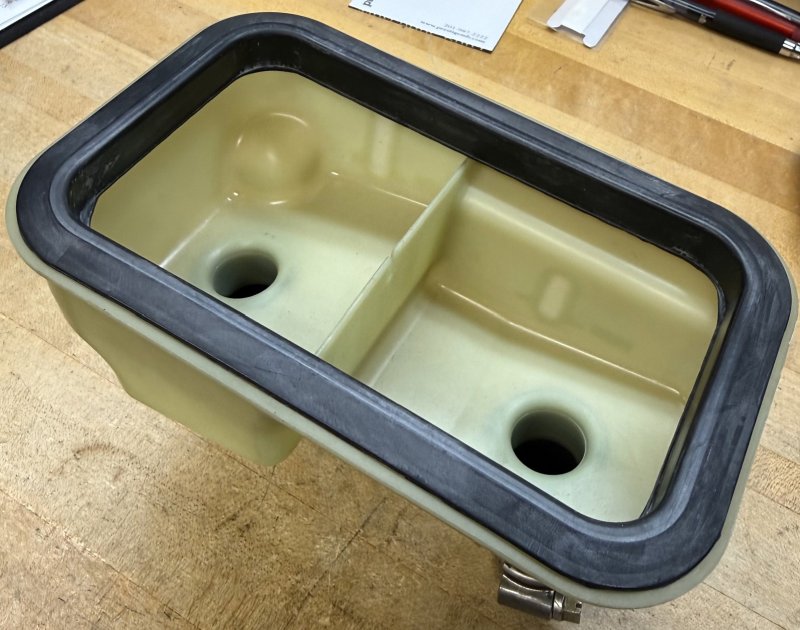

and 2 hardened steel bolts. Brake fluid reservoir (shown in
photo) is NOT included. Red Euro cap is NOT included.
NOTE
- this GM adapter requires the use of a
Euro cap adapter (45mm round threaded cap) which screws onto

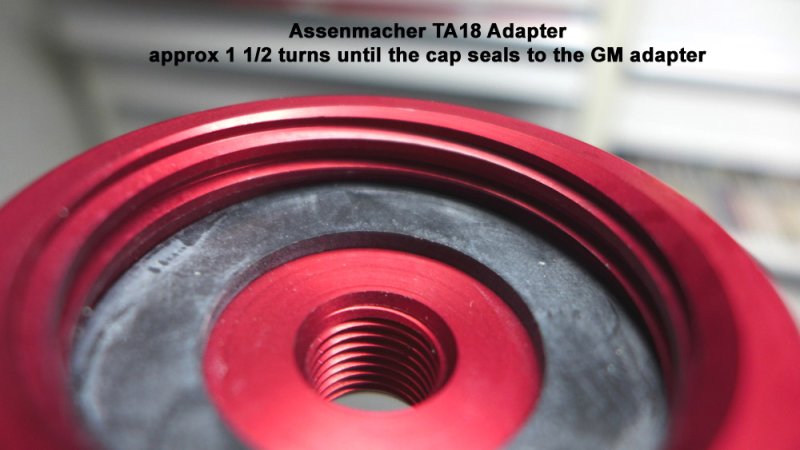

the top of the Ultimate Garage GM cap. Assenmacher
TA18 adapter cap will work and can be
purchased online through various online dealers. Ultimate
Garage no longer offers the Euro cap. The Motive 1100 adapter
has worked in the past although Motive may have recently
re-designed the cap and it may not seal properly without a
double gasket or other workaround.
|
